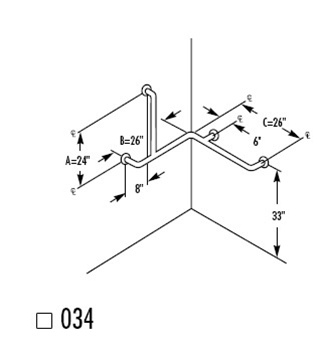

8120-034000 SERIES 812 GRAB BARS - Grab Bar 1-1/2"ODX26X26X24

SERIES 812 GRAB BARS - Grab Bar 1-1/2"ODX26X26X24
SERIES 812 GRAB BARS - Grab Bar 1-1/2"ODX26X26X24

SERIES 812 GRAB BARS - Grab Bar 1-1/2"ODX26X26X24
Our Price: $279.00


Product Code: 8120-034000
Qty:

Description

  • 1-1/2" O.D.
  • Concealed Mounting
  • Heavy Duty Stainless Steel

CONSTRUCTION:

FLANGES

Fabricated of type 304 (18-8), 3-1/8" dia. 13 gauge stainless steel.

ESCUTCHEONS

Fabricated of type 304 (18-8), 22 gauge stainless steel. One-piece drawn construction with exposed surfaces in architectural satin finish. Snap over flanges to conceal mounting screws.

TUBING

Fabricated of type 304 (18-8), 1-1/2" O.D. 18 gauge stainless steel, seamless construction with exposed surfaces in architectural satin finish. Bent ends of tubing pass thru the flanges and are heliarc welded with a single structural unit for maximum strength. Intermediate supports are contour cut and joined by heliarc welding to form an integral part of the grab bar. All welds ground and polished to blend. Mandrel bending process maintains uniform bar diameter. Return provides 1-1/2" standard safety clearance between wall and bar.

STRENGTH:

When properly mounted, all Bradley heavy duty grab bar systems meet or exceed the requirements of ANSI Standard A117.1, the ADA and ABA Accessibility Guidelines for Buildings and Facilities (ADAAG) and the Uniform Federal Accessibility Standard (UFAS).

INSTALLATION:

Secure to wall where adequate in-wall backing exists. Use bar as template to locate mounting holes. Drill holes and set anchors as appropriate. Mount grab bar and secure mounting screws. Snap escutcheons into place. (For Bradley grab bar mounting kits, refer to Mounting Kits page at back of Grab Bar section.)

OPTIONAL FEATURES:

Safety-grip finish (Suffix: -2)

High-polish finish (Suffix: -4)

Safety grip with polished finish (Suffix: -7)

GUIDE SPECIFICATION:

Grab bar shall be fabricated of type 304 satin finish stainless steel with concealed mounting flanges in sizes and configurations as indicated. Install with Bradley Mounting Kits as indicated.

Grab Bar shall be Bradley Model 812.

BradEX® Models

Configuration

Number

Shipping Data

Configuration

Number

Shipping Data

Cu. Ft.

Wt. Lbs.

Cu. Ft.

Wt. Lbs.

001-12”

0.13

2

059**

2.85

7

001-18Ӑ

0.14

2

059-36” x 54”

4.34

7

001-24Ӑ

0.14

3

059-42” x 54”

4.5

7

001-30”

0.15

3

001-36Ӑ

0.15

3

001-42Ӑ

0.15

4

001-48Ӑ

0.25

4

NOTE: These units must ship via common carrier.

** 059 36 x 52” Standard Dimensions.

êIndicates available Safety Grip. BradEX®
